FabCure 2

$1,099.00

The FabCure 2 is an advanced post-curing tool for SHINING 3D printers, featuring high-power multi-surface light curing, rapid chamber heating, and customizable curing parameters. Designed for precision and efficiency, it ensures optimal performance for 3D-printed dental parts, with a larger curing volume and easy operation via an OLED screen.

Note: 3D printing equipment can take 3-4 business days to ship.

-
+
Add to Wishlist
Add to Wishlist
SKU C5106-C Categories ,

Description

FabCure 2 is recommended as the standard post-curing tool for 3D printers from Shining3D. With FabCure 2, each resin cure profile is finely tuned to bring the part to its peak performance
through precise heat and light. FabCure 2 precisely defines the post-processing steps of the printed object to ensure high precision and optimal material performance, while automating the process.

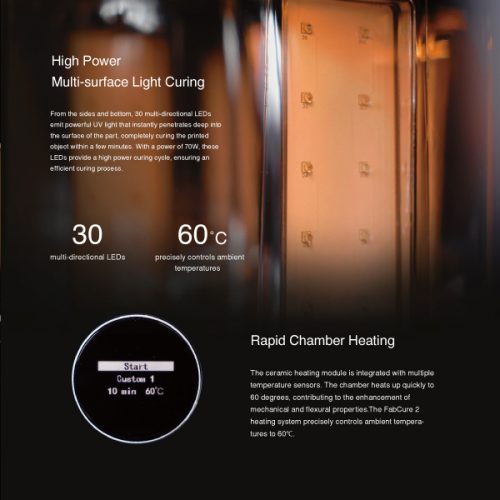

High-Power Multi-surface Light Curing

From the sides and bottom, 30 multi-directional LEDs emit powerful UV light that instantly penetrates deep into the surface of the part, completely curing the printed object within a few minutes. With a power of 70W, these LEDs provide a high-power curing cycle, ensuring an efficient curing process.

Rapid Chamber Heating

The ceramic heating module is integrated with multiple temperature sensors. The chamber heats up quickly to 60 degrees, contributing to the enhancement of mechanical and flexural properties. The FabCure 2 heating system precisely controls ambient temperatures to 60°C.

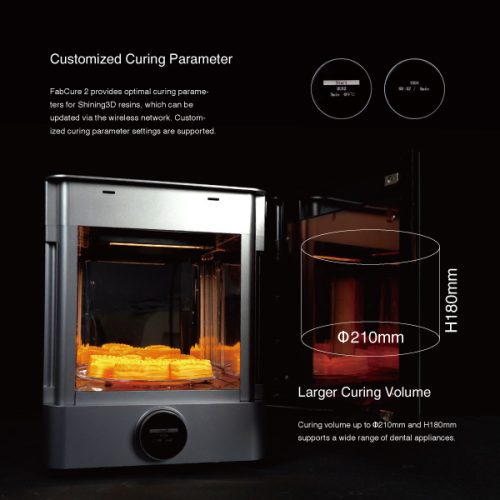

Customized Curing Parameter

FabCure 2 provides optimal curing parameters for Shining3D resins, which can be updated via the wireless network. Customized curing parameter settings are supported.

Larger Curing Volume

Curing volume up to Φ210mm and H180mm supports a wide range of dental appliances.

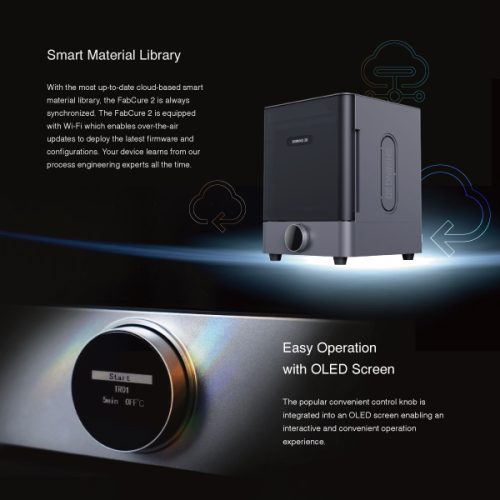

Smart Material Library

With the most up-to-date cloud-based smart material library, the FabCure 2 is always synchronized. The FabCure 2 is equipped with Wi-Fi which enables over-the-air updates to deploy the latest firmware and configurations. Your device learns from our process engineering experts all the time.

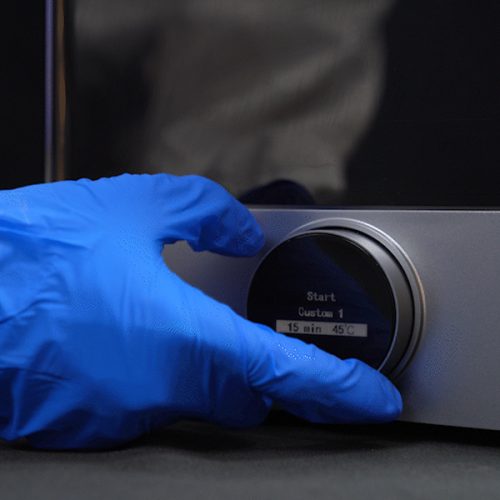

Easy Operation with OLED Screen

The popular convenient control knob is integrated into an OLED screen enabling an interactive and convenient operation experience.

Additional information

Weight 26 lbs
Dimensions 20 × 17 × 17 in

Technical Specifications

Dimension (W x D x H)290mm×290mm×367.5mm
Weight10.5kg
Curing volumeΦ210mm H180mm
Operating temperature10~30°C
Max. Curing temperature60°C
Light sourceUV LED
Wavelength385nm ~ 405nm
LED power70W
PowerAC 100-240V, 150W
InterfaceWI-FI

Downloads

FabCure 2 Brochure
